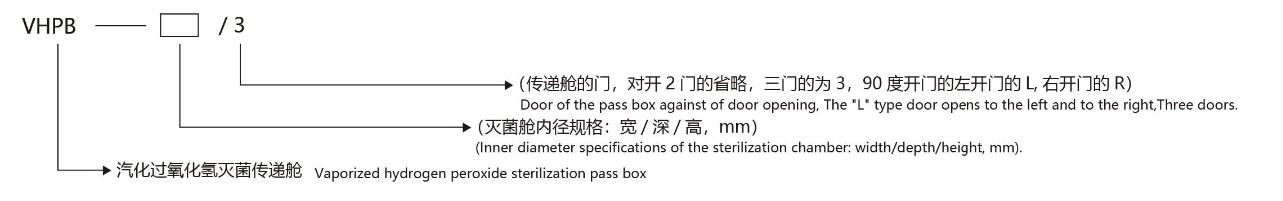

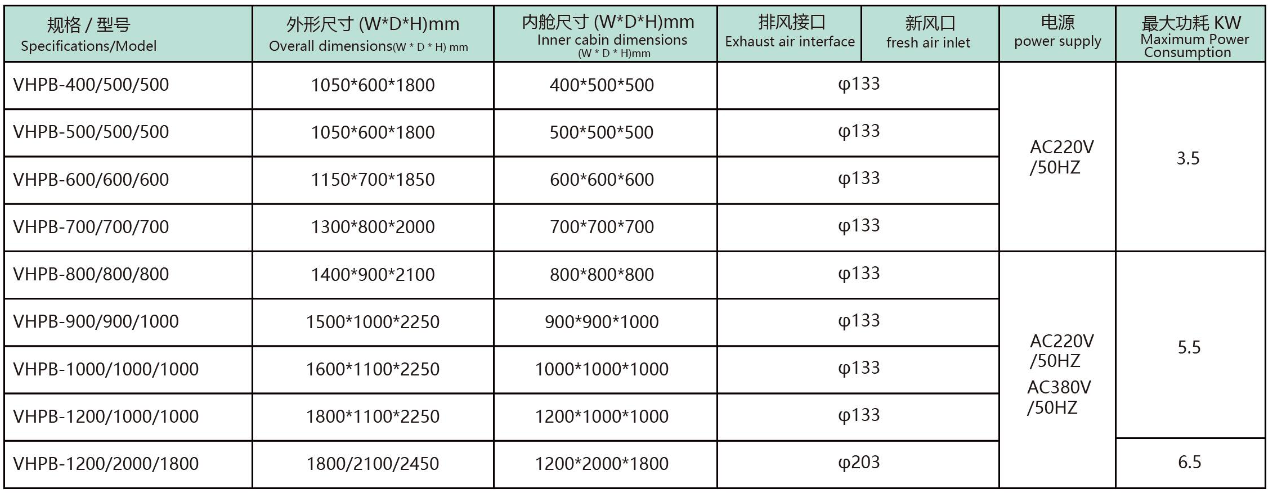

型号与规格
VHPB -1000/1000/1000
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1600*1100*2250 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 1000*1000*1000 |
Exhaustair interface | φ133 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -1200/1000/1000
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1800*1100*2250 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 1200*1000*1000 |
Exhaustair interface | φ133 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -1200/2000/1800
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1800/2100/2450 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 1200*2000*1800 |
Exhaustair interface | φ203 |
power supply | 6.5 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -400/500/500
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1050*600*1800 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 400*500*500 |
Exhaustair interface | φ133 |
freshair inlet | AC 220V /50 Hz |
power supply | 3.5 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -500/500/500
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1050*600*1800 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 500*500*500 |
Exhaustair interface | φ133 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -600/600/600
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1150*700*1850 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 600*600*600 |
Exhaustair interface | φ133 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -700/700/700
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1300*800*2000 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 700*700*700 |
Exhaustair interface | φ133 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -800/800/800
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1400*900*2100 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 800*800*800 |
Exhaustair interface | φ133 |
freshair inlet | AC 220V /50 Hz AC 380V /50 Hz |
power supply | 5.5 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
VHPB -900/900/1000
规格参数
参数 | 值 |
|---|---|
W*D*H ） mm Overall dimensions (W*D*H) mm | 1500*1000*2250 |
W*D*H ） mm Inner cabin dimensions (W*D*H)mm | 900*900*1000 |
Exhaustair interface | φ133 |
material | 316不锈钢拉丝板 316 |
compressedair | 0.6-0.8 Mpa |
Sterilizer | 优于浓度30%食品级过氧化氢溶液 Better than 30%food-grade hydrogen peroxide solution |
VHPres idue removal efficiency | ≤1PPM ， 不超过20min ≤1 PPM , no more than 20 minutes |
Air supply level | CLASS A |
Vaporization temperature | ≤100℃ |
Leakage rate | ≤0 . 5%VOL/h(在100Pa下) ≤0.5% VOL /h( under 100 Pa ) |
Noise | ≤70 dB (A) |
Number ofair changes | ≥80T/h |
control mode | 手动或自动 |
Air flow | 0.5m³/h |
Sterilization efficiency | 6 |
sterilization time | ≤60min |
Range of Sterilant Weight | 50g ～ 500g |
